diff --git a/kernel/include/vx_intrinsics.h b/kernel/include/vx_intrinsics.h
index 71d4cd5b..da9cf0e2 100644
--- a/kernel/include/vx_intrinsics.h
─+++ b/kernel/include/vx_intrinsics.h
@@ -281,6 +281,19 @@ inline __attribute__((const)) int vx_shfl_idx(size_t value, int bval, int cval,
return ret;
}
+// DOT8 funct7 设为9 避免以后项目添加新指令产生冲突
+// R type: .insn r opcode7, funct3, funct7, rd, rs1, rs2
+/* +--------+-----+-----+--------+----+---------+ */
+/* | funct7 | rs2 | rs1 | funct3 | rd | opcode7 | */
+/* +--------+-----+-----+--------+----+---------+ */
+/* 31 25 20 15 12 7 0 */
+
+inline int vx_dot8(int a, int b) {
+ size_t ret;
+ asm volatile (".insn r %1, 0, 9, %0, %2, %3" : "=r"(ret) : "i"(RISCV_CUSTOM0), "r"(a), "r"(b));
+ return ret;
+}
+
#ifdef __cplusplus
}
#endif
diff --git a/sim/simx/decode.cpp b/sim/simx/decode.cpp
index f2d6cc35..9cb1157e 100644
--- a/sim/simx/decode.cpp
─+++ b/sim/simx/decode.cpp
@@ -112,6 +112,7 @@ static op_string_t op_string(const Instr &instr) {
}
}
case AluType::CZERO: return {aluArgs.imm ? "CZERO.NEZ":"CZERO.EQZ", ""};
+ case AluType::DOT8: return {"DOT8", ""};
default:
std::abort();
}
@@ -1118,6 +1119,22 @@ void Emulator::decode(uint32_t code, uint32_t wid, uint64_t uuid) {
}
} break;
#endif
+ case 9: {
+ switch (funct3) {
+ case 0: { // DOT8
+ auto instr = std::allocate_shared<Instr>(instr_pool_, uuid, FUType::ALU);
+ instr->setDestReg(rd, RegType::Integer);
+ instr->setSrcReg(0, rs1, RegType::Integer);
+ instr->setSrcReg(1, rs2, RegType::Integer);
+ instr->setOpType(AluType::DOT8);
+ ibuffer.push_back(instr);
+ } break;
+
+ default:
+ std::abort();
+ }
+ } break;
+
default:
std::abort();
}
diff --git a/sim/simx/execute.cpp b/sim/simx/execute.cpp
index 25ee6850..9f75c039 100644
--- a/sim/simx/execute.cpp
─+++ b/sim/simx/execute.cpp
@@ -300,6 +300,28 @@ instr_trace_t* Emulator::execute(const Instr &instr, uint32_t wid) {
rd_data[t].i = cond ? 0 : rs1_data[t].i;
}
} break;
+ case AluType::DOT8: {
+ // DOT8
+ for (uint32_t t = thread_start; t < num_threads; ++t) {
+ if (!warp.tmask.test(t))
+ continue;
+ // 实现 8-bit 点积运算逻辑
+ // 假设是两个 32-bit 寄存器，每个包含 4 个 8-bit 值
+ uint32_t src0_val = rs1_data[t].u32;
+ uint32_t src1_val = rs2_data[t].u32;
+
+ int32_t result = 0;
+ for (int i = 0; i < 4; ++i) {
+ int8_t a = (src0_val >> (i * 8)) & 0xFF;
+ int8_t b = (src1_val >> (i * 8)) & 0xFF;
+ result += a * b;
+ }
+
+ rd_data[t].i = result;
+ }
+ rd_write = true;
+ } break;
+
default:
std::abort();
}
diff --git a/sim/simx/func_unit.cpp b/sim/simx/func_unit.cpp
index 42cbeb9a..ef6d65fc 100644
--- a/sim/simx/func_unit.cpp
+++ b/sim/simx/func_unit.cpp
@@ -51,6 +51,7 @@ void AluUnit::tick() {
case AluType::AND:
case AluType::OR:
case AluType::CZERO:
+ case AluType::DOT8:
delay = 2;
break;
default:
diff --git a/sim/simx/types.h b/sim/simx/types.h
index d069bdae..3182c33c 100644
--- a/sim/simx/types.h
+++ b/sim/simx/types.h
@@ -169,7 +169,8 @@ enum class AluType {
AND,
OR,
XOR,
- CZERO
+ CZERO,
+ DOT8
};
struct IntrAluArgs {
@@ -193,6 +194,7 @@ inline std::ostream &operator<<(std::ostream &os, const AluType& type) {
case AluType::OR: os << "OR"; break;
case AluType::XOR: os << "XOR"; break;
case AluType::CZERO: os << "CZERO"; break;
+ case AluType::DOT8: os << "DOT8"; break;
default:
assert(false);
}
diff --git a/tests/regression/Makefile b/tests/regression/Makefile
index be3ccc96..8db25319 100644
--- a/tests/regression/Makefile
+++ b/tests/regression/Makefile
@@ -21,6 +21,7 @@ all:
$(MAKE) -C sgemm2
$(MAKE) -C madmax
$(MAKE) -C stencil3d
+ $(MAKE) -C dot8
run-simx:
$(MAKE) -C basic run-simx
@@ -42,6 +43,7 @@ run-simx:
$(MAKE) -C sgemm2 run-simx
$(MAKE) -C madmax run-simx
$(MAKE) -C stencil3d run-simx
+ $(MAKE) -C dot8 run-simx
run-rtlsim:
$(MAKE) -C basic run-rtlsim
@@ -63,6 +65,7 @@ run-rtlsim:
$(MAKE) -C sgemm2 run-rtlsim
$(MAKE) -C madmax run-rtlsim
$(MAKE) -C stencil3d run-rtlsim
+ $(MAKE) -C dot8 run-rtlsim
clean:
$(MAKE) -C basic clean
@@ -84,3 +87,4 @@ clean:
$(MAKE) -C sgemm2 clean
$(MAKE) -C madmax clean
$(MAKE) -C stencil3d clean
+ $(MAKE) -C dot8 clean
diff --git a/tests/regression/dot8/Makefile b/tests/regression/dot8/Makefile
new file mode 100644
index 00000000..f8e9ec9b
--- /dev/null
+++ b/tests/regression/dot8/Makefile
@@ -0,0 +1,14 @@
+ROOT_DIR := $(realpath ../../..)
+include $(ROOT_DIR)/config.mk
+
+PROJECT := dot8
+
+SRC_DIR := $(VORTEX_HOME)/tests/regression/$(PROJECT)
+
+SRCS := $(SRC_DIR)/main.cpp
+
+VX_SRCS := $(SRC_DIR)/kernel.cpp
+
+OPTS ?= -n32
+
+include ../common.mk
diff --git a/tests/regression/dot8/common.h b/tests/regression/dot8/common.h
new file mode 100644
index 00000000..db203b91
--- /dev/null
+++ b/tests/regression/dot8/common.h
@@ -0,0 +1,16 @@
+#ifndef _COMMON_H_
+#define _COMMON_H_
+
+#ifndef TYPE
+#define TYPE int8_t
+#endif
+
+typedef struct {
+ uint32_t grid_dim[2];
+ uint32_t size;
+ uint64_t A_addr;
+ uint64_t B_addr;
+ uint64_t C_addr;
+} kernel_arg_t;
+
+#endif
diff --git a/tests/regression/dot8/kernel.cpp b/tests/regression/dot8/kernel.cpp
new file mode 100644
index 00000000..1fce2dec
--- /dev/null
+++ b/tests/regression/dot8/kernel.cpp
@@ -0,0 +1,58 @@
+#include <cstdint>
+#include <vx_spawn.h>
+#include "common.h"
+#include <stdio.h>
+#include <vx_print.h>
+
+void MatrixMultiply(TYPE *A, TYPE *B, int32_t *C, int N) {
+ vx_printf("MatrixMultiply start (N=%d)\n", N);
+ // auto C = reinterpret_cast<uint32_t *>(C);
+ vx_printf("C point addr: 0x%x\n", C);
+
+ int32_t sum(0);
+ for (int i = 0; i < N; i+=4) {
+ // Pack A elements
+ uint32_t packedA = *((uint32_t *)&A[i]);
+ vx_printf(" packedA=0x%08x\n", packedA);
+
+ // Pack B elements
+ uint32_t packedB = (uint8_t)B[(i + 0) * N]
+ | ((uint8_t)B[(i + 1) * N] << 8)
+ | ((uint8_t)B[(i + 2) * N] << 16)
+ | ((uint8_t)B[(i + 3) * N] << 24);
+ vx_printf(" packedB=0x%08x (bytes: %x,%x,%x,%x)\n",
+ packedB,
+ (uint8_t)B[(i + 0) * N],
+ (uint8_t)B[(i + 1) * N],
+ (uint8_t)B[(i + 2) * N],
+ (uint8_t)B[(i + 3) * N]);
+
+ int32_t dot = vx_dot8(packedA, packedB);
+ // int32_t dot = packedA * packedB; // debug
+ vx_printf(" dot product=0x%08x (%d) C point: 0x%x\n", dot, dot, C);
+ sum += dot;
+ }
+ C[0] = sum;
+ vx_printf(" Final C = %d (0x%08x)\n", C[0], C[0]);
+
+ vx_printf("MatrixMultiply completed\n");
+}
+
+
+void kernel_body(kernel_arg_t* __UNIFORM__ arg) {
+ auto A = reinterpret_cast<TYPE*>(arg->A_addr);
+ auto B = reinterpret_cast<TYPE*>(arg->B_addr);
+ auto C = reinterpret_cast<int32_t*>(arg->C_addr);
+ auto size = arg->size;
+
+ int col = blockIdx.x;
+ int row = blockIdx.y;
+ vx_printf("row: %d, col: %d\n", row, col);
+ MatrixMultiply(&A[row*size], &B[col], &C[row * size + col], size);
+}
+
+
+int main() {
+ kernel_arg_t* arg = (kernel_arg_t*)csr_read(VX_CSR_MSCRATCH);
+ return vx_spawn_threads(2, arg->grid_dim, nullptr, (vx_kernel_func_cb)kernel_body, arg);
+}
diff --git a/tests/regression/dot8/main.cpp b/tests/regression/dot8/main.cpp
new file mode 100644
index 00000000..b4d9f135
--- /dev/null
+++ b/tests/regression/dot8/main.cpp
@@ -0,0 +1,301 @@
+#include <cstdint>
+#include <cstdio>
+#include <endian.h>
+#include <iostream>
+#include <unistd.h>
+#include <string.h>
+#include <vector>
+#include <chrono>
+#include <vortex.h>
+#include <cmath>
+#include "common.h"
+#include <iomanip>
+
+#define FLOAT_ULP 6
+
+#define RT_CHECK(_expr) \
+ do { \
+ int _ret = _expr; \
+ if (0 == _ret) \
+ break; \
+ printf("Error: '%s' returned %d!\n", #_expr, (int)_ret); \
+ cleanup(); \
+ exit(-1); \
+ } while (false)
+
+///////////////////////////////////////////////////////////////////////////////
+
+template <typename Type>
+class Comparator {};
+
+template <>
+class Comparator<int> {
+public:
+ static const char* type_str() {
+ return "integer";
+ }
+ static int generate() {
+ return rand();
+ }
+ static bool compare(int a, int b, int index, int errors) {
+ if (a != b) {
+ if (errors < 100) {
+ printf("*** error: [%d] expected=%d, actual=%d\n", index, b, a);
+ }
+ return false;
+ }
+ return true;
+ }
+};
+
+template <>
+class Comparator<float> {
+public:
+ static const char* type_str() {
+ return "float";
+ }
+ static int generate() {
+ return static_cast<float>(rand()) / RAND_MAX;
+ }
+ static bool compare(float a, float b, int index, int errors) {
+ union fi_t { float f; int32_t i; };
+ fi_t fa, fb;
+ fa.f = a;
+ fb.f = b;
+ auto d = std::abs(fa.i - fb.i);
+ if (d > FLOAT_ULP) {
+ if (errors < 100) {
+ printf("*** error: [%d] expected=%f, actual=%f\n", index, b, a);
+ }
+ return false;
+ }
+ return true;
+ }
+};
+
+template <>
+class Comparator<int8_t> {
+public:
+ static const char* type_str() {
+ return "int8_t";
+ }
+ static int8_t generate() {
+ return static_cast<int8_t>(rand() % 256); // Generate value between 0-255
+ }
+ static bool compare(int a, int b, int index, int errors) {
+ if (a != b) {
+ if (errors < 100) {
+ printf("*** error: [%d] expected=0x%x, actual=0x%x\n", index, b, a);
+ }
+ return false;
+ }
+ return true;
+ }
+};
+

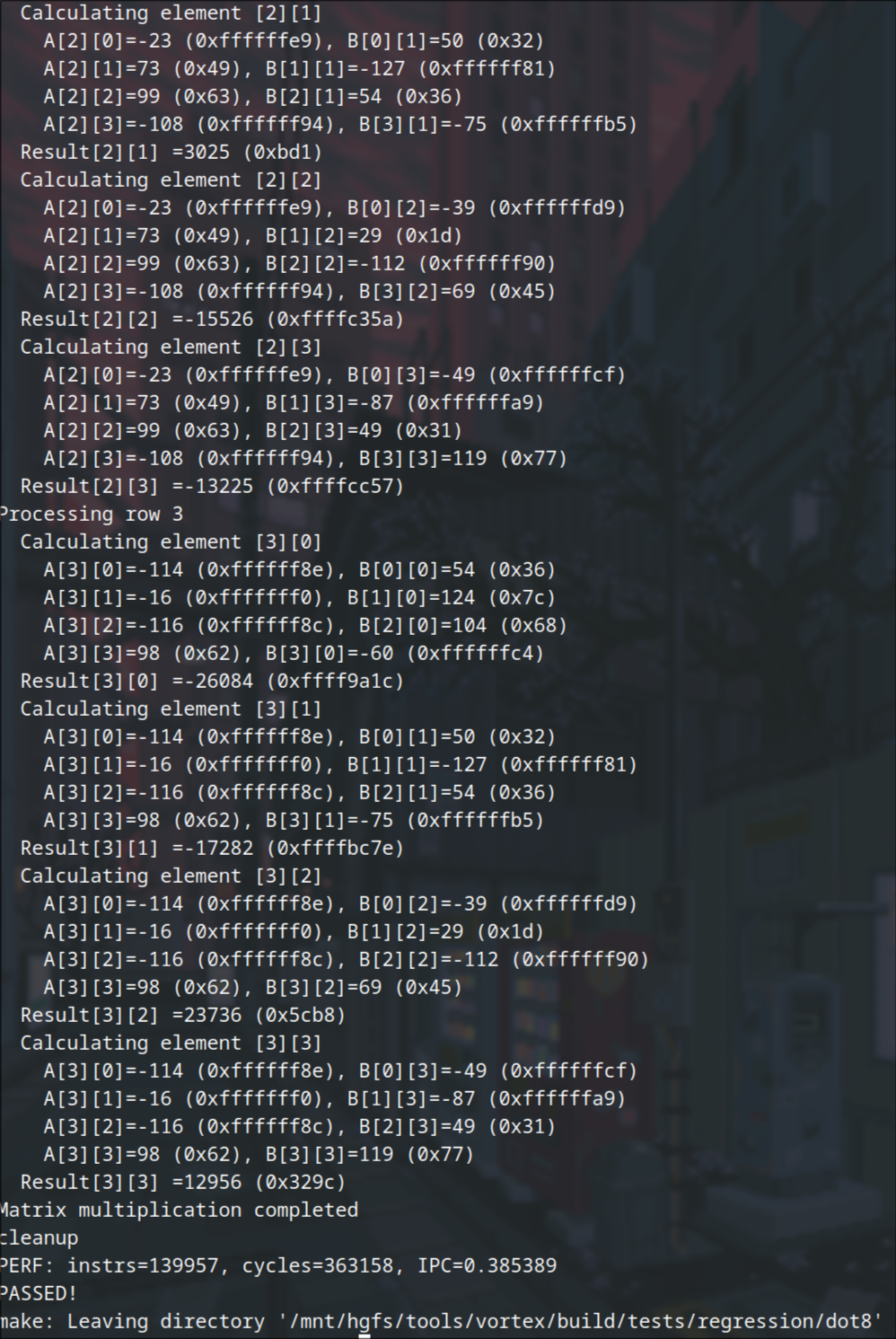

+static void matmul_cpu(int32_t *out, const TYPE *A, const TYPE *B, uint32_t size) {
+ printf("matmul_cpu Starting matrix multiplication (size: %u)\n", size);
+ for (uint32_t row = 0; row < size; ++row) {
+ printf("Processing row %u\n", row);
+ for (uint32_t col = 0; col < size; ++col) {
+ int32_t sum(0);
+ printf(" Calculating element [%u][%u]\n", row, col);
+ for (uint32_t i = 0; i < size; i++) {
+ TYPE a = A[row * size + i];
+ TYPE b = B[i * size + col];
+ printf(" A[%u][%u]=%d (0x%x), B[%u][%u]=%d (0x%x)\n", row, i, a, a, i, col, b, b);
+ sum += a * b;
+ }
+ out[row * size + col] = sum;
+ printf(" Result[%u][%u] =%d (0x%x)\n", row, col, sum, sum);
+ }
+ }
+ printf("Matrix multiplication completed\n");
+}
+
+
+const char* kernel_file = "kernel.vxbin";
+uint32_t size = 32;
+
+vx_device_h device = nullptr;
+vx_buffer_h A_buffer = nullptr;
+vx_buffer_h B_buffer = nullptr;
+vx_buffer_h C_buffer = nullptr;
+vx_buffer_h krnl_buffer = nullptr;
+vx_buffer_h args_buffer = nullptr;
+kernel_arg_t kernel_arg = {};
+
+static void show_usage() {
+ std::cout << "Vortex Test." << std::endl;
+ std::cout << "Usage: [-k: kernel] [-n size] [-h: help]" << std::endl;
+}
+
+static void parse_args(int argc, char **argv) {
+ int c;
+ while ((c = getopt(argc, argv, "n:k:h")) != -1) {
+ switch (c) {
+ case 'n':
+ size = atoi(optarg);
+ break;
+ case 'k':
+ kernel_file = optarg;
+ break;
+ case 'h':
+ show_usage();
+ exit(0);
+ break;
+ default:
+ show_usage();
+ exit(-1);
+ }
+ }
+}
+
+void cleanup() {
+ if (device) {
+ vx_mem_free(A_buffer);
+ vx_mem_free(B_buffer);
+ vx_mem_free(C_buffer);
+ vx_mem_free(krnl_buffer);
+ vx_mem_free(args_buffer);
+ vx_dev_close(device);
+ }
+}
+

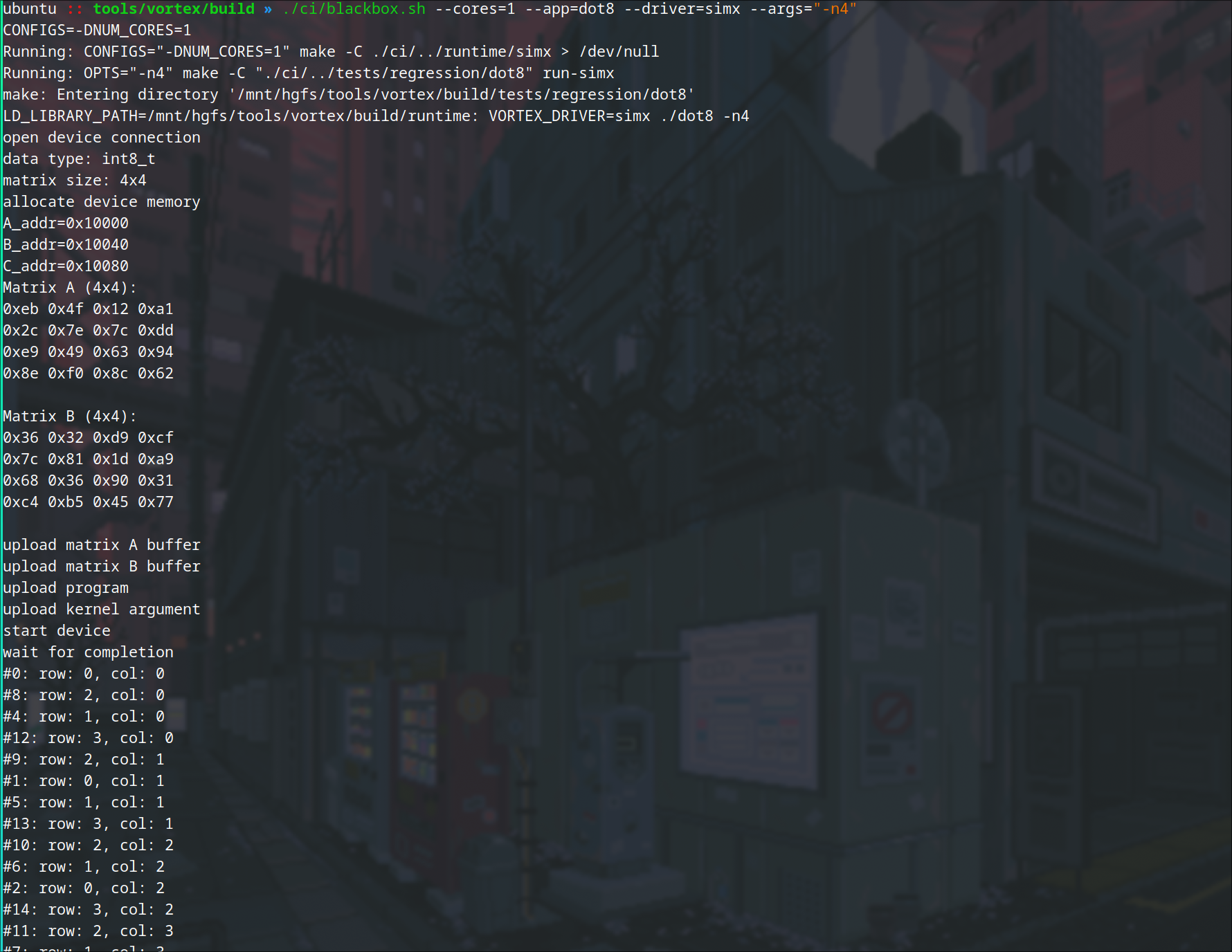

+int main(int argc, char *argv[]) {
+ // parse command arguments
+ parse_args(argc, argv);
+
+ std::srand(50);
+
+ // open device connection
+ std::cout << "open device connection" << std::endl;
+ RT_CHECK(vx_dev_open(&device));
+
+ uint32_t size_sq = size * size;
+ uint32_t buf_size = size_sq * sizeof(TYPE);
+ uint32_t C_buf_size = buf_size * 4;
+
+ std::cout << "data type: " << Comparator<TYPE>::type_str() << std::endl;
+ std::cout << "matrix size: " << size << "x" << size << std::endl;
+
+ kernel_arg.grid_dim[0] = size;
+ kernel_arg.grid_dim[1] = size;
+ kernel_arg.size = size;
+
+ // allocate device memory
+ std::cout << "allocate device memory" << std::endl;
+ RT_CHECK(vx_mem_alloc(device, buf_size, VX_MEM_READ, &A_buffer));
+ RT_CHECK(vx_mem_address(A_buffer, &kernel_arg.A_addr));
+ RT_CHECK(vx_mem_alloc(device, buf_size, VX_MEM_READ, &B_buffer));
+ RT_CHECK(vx_mem_address(B_buffer, &kernel_arg.B_addr));
+ RT_CHECK(vx_mem_alloc(device, C_buf_size, VX_MEM_WRITE, &C_buffer));
+ RT_CHECK(vx_mem_address(C_buffer, &kernel_arg.C_addr));
+
+ std::cout << "A_addr=0x" << std::hex << kernel_arg.A_addr << std::endl;
+ std::cout << "B_addr=0x" << std::hex << kernel_arg.B_addr << std::endl;
+ std::cout << "C_addr=0x" << std::hex << kernel_arg.C_addr << std::endl;
+
+ // generate source data
+ std::vector<TYPE> h_A(size_sq);
+ std::vector<TYPE> h_B(size_sq);
+ std::vector<int32_t> h_C(size_sq);
+ for (uint32_t i = 0; i < size_sq; ++i) {
+ h_A[i] = Comparator<TYPE>::generate();
+ h_B[i] = Comparator<TYPE>::generate();
+ }
+
+ // 打印矩阵 h_A
+ std::cout << "Matrix A (" << size << "x" << size << "):\n";
+ for (uint32_t row = 0; row < size; ++row) {
+ for (uint32_t col = 0; col < size; ++col) {
+ std::cout << "0x"
+ << std::hex << std::setw(2) << std::setfill('0')
+ << static_cast<int>(static_cast<uint8_t>(h_A[row * size + col])) << " ";
+ }
+ std::cout << "\n";
+ }
+
+ // 打印矩阵 h_B
+ std::cout << "\nMatrix B (" << size << "x" << size << "):\n";
+ for (uint32_t row = 0; row < size; ++row) {
+ for (uint32_t col = 0; col < size; ++col) {
+ std::cout << "0x"
+ << std::hex << std::setw(2) << std::setfill('0')
+ << static_cast<int>(static_cast<uint8_t>(h_B[row * size + col])) << " ";
+ }
+ std::cout << "\n";
+ }
+ std::cout << std::dec << std::endl; // 恢复十进制输出
+
+
+
+ // upload matrix A buffer
+ {
+ std::cout << "upload matrix A buffer" << std::endl;
+ RT_CHECK(vx_copy_to_dev(A_buffer, h_A.data(), 0, buf_size));
+ }
+
+ // upload matrix B buffer
+ {
+ std::cout << "upload matrix B buffer" << std::endl;
+ RT_CHECK(vx_copy_to_dev(B_buffer, h_B.data(), 0, buf_size));
+ }
+
+ // upload program
+ std::cout << "upload program" << std::endl;
+ RT_CHECK(vx_upload_kernel_file(device, kernel_file, &krnl_buffer));
+
+ // upload kernel argument
+ std::cout << "upload kernel argument" << std::endl;
+ RT_CHECK(vx_upload_bytes(device, &kernel_arg, sizeof(kernel_arg_t), &args_buffer));
+
+ auto time_start = std::chrono::high_resolution_clock::now();
+
+ // start device
+ std::cout << "start device" << std::endl;
+ RT_CHECK(vx_start(device, krnl_buffer, args_buffer));
+
+ // wait for completion
+ std::cout << "wait for completion" << std::endl;
+ RT_CHECK(vx_ready_wait(device, VX_MAX_TIMEOUT));
+
+ auto time_end = std::chrono::high_resolution_clock::now();
+ double elapsed = std::chrono::duration_cast<std::chrono::milliseconds>(time_end - time_start).count();
+ printf("Elapsed time: %lg ms\n", elapsed);
+
+ // download destination buffer
+ std::cout << "download destination buffer" << std::endl;
+ RT_CHECK(vx_copy_from_dev(h_C.data(), C_buffer, 0, C_buf_size));
+
+ // verify result
+ std::cout << "verify result" << std::endl;
+ int errors = 0;
+ {
+ std::vector<int32_t> h_ref(size_sq);
+ matmul_cpu(h_ref.data(), h_A.data(), h_B.data(), size);
+ uint32_t int_size = (int32_t)(h_ref.size() / 4);
+
+ auto int_h_C = reinterpret_cast<int32_t *>(h_C.data());
+ auto int_h_ref = reinterpret_cast<int32_t *>(h_ref.data());
+
+ for (uint32_t i = 0; i < int_size; ++i) {
+ if (!Comparator<TYPE>::compare(int_h_C[i], int_h_ref[i], i, errors)) {
+ ++errors;
+ }
+ }
+ }
+
+ // cleanup
+ std::cout << "cleanup" << std::endl;
+ cleanup();
+
+ if (errors != 0) {
+ std::cout << "Found " << std::dec << errors << " errors!" << std::endl;
+ std::cout << "FAILED!" << std::endl;
+ return errors;
+ }
+
+ std::cout << "PASSED!" << std::endl;
+ return 0;
+}
|
